Low Volume / High Tonnage Custom Injection Molding
Shorten Run Lengths & Lead Times, and Cut Costs

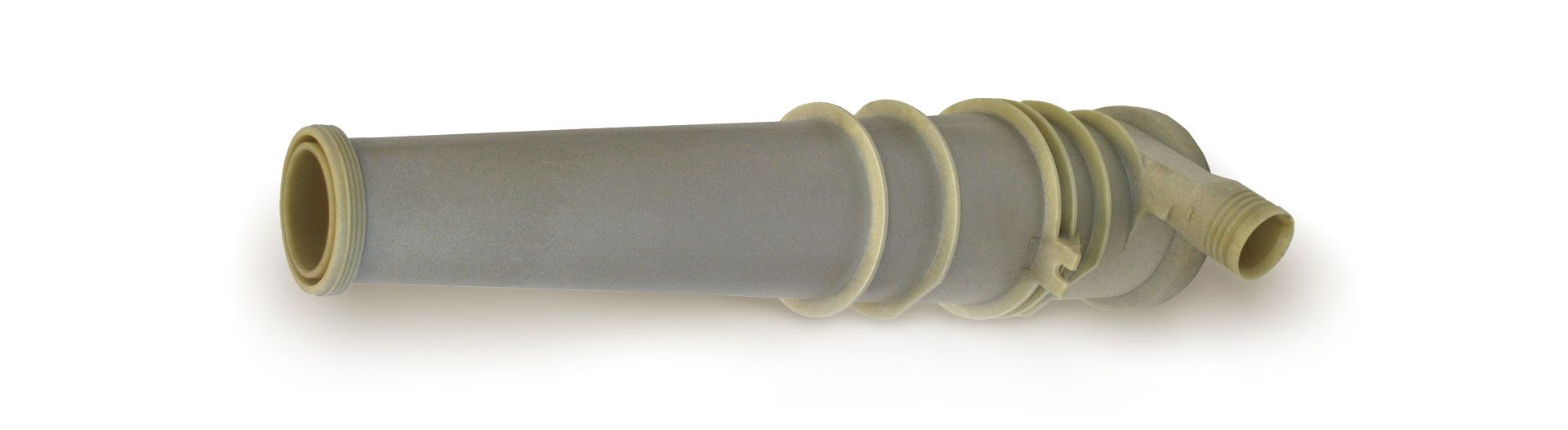

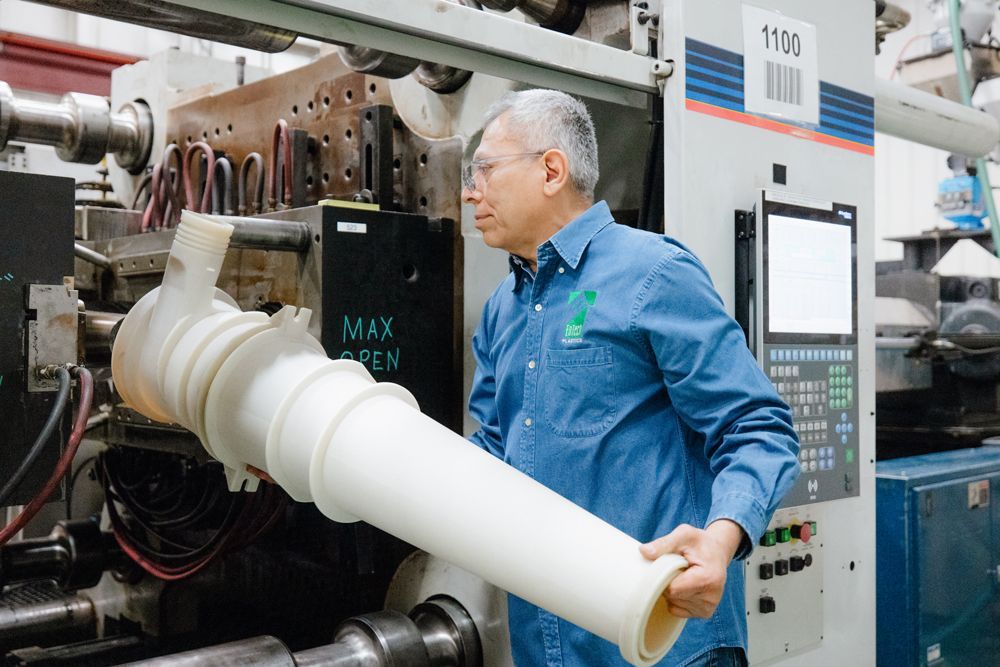

By focusing on minimizing set up and start up times, we offer cost-effective low volume production runs, particularly in high tonnage machines. In many of our low volume programs we produce large plastic parts (weighing up to 22 pounds) in large tonnage injection molding machines (up to 1,100 tons) in run lengths of fewer than 1,000 parts per year.
With our state-of-the-art custom injection molding machines and decades of experience, we can ensure your project’s success using:
- DFM Services
- Gas-assist technology
- Insert molding technology
- Over molding technology
- Master Unit Die (MUD) Frames
- Engineering and general-purpose resins
- New product introductions and tool transfers
- Reshoring plastic parts

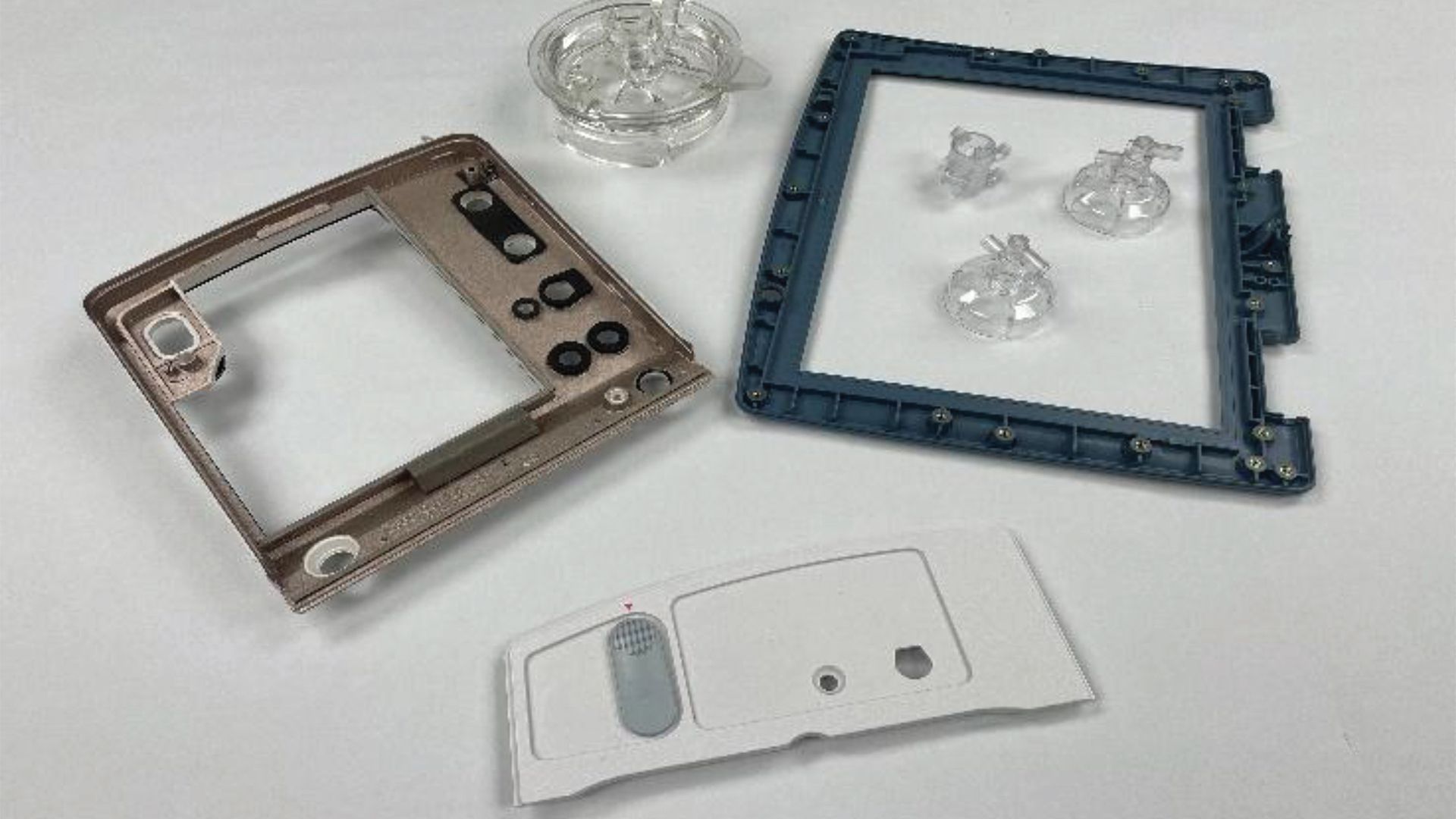

Our low volume capabilities serve diverse industries requiring specialized large-part solutions. From heavy-duty truck components and body panels to medical device equipment housings, industrial machinery covers, and consumer product components, we deliver precision-molded parts that meet stringent quality requirements across demanding applications.
